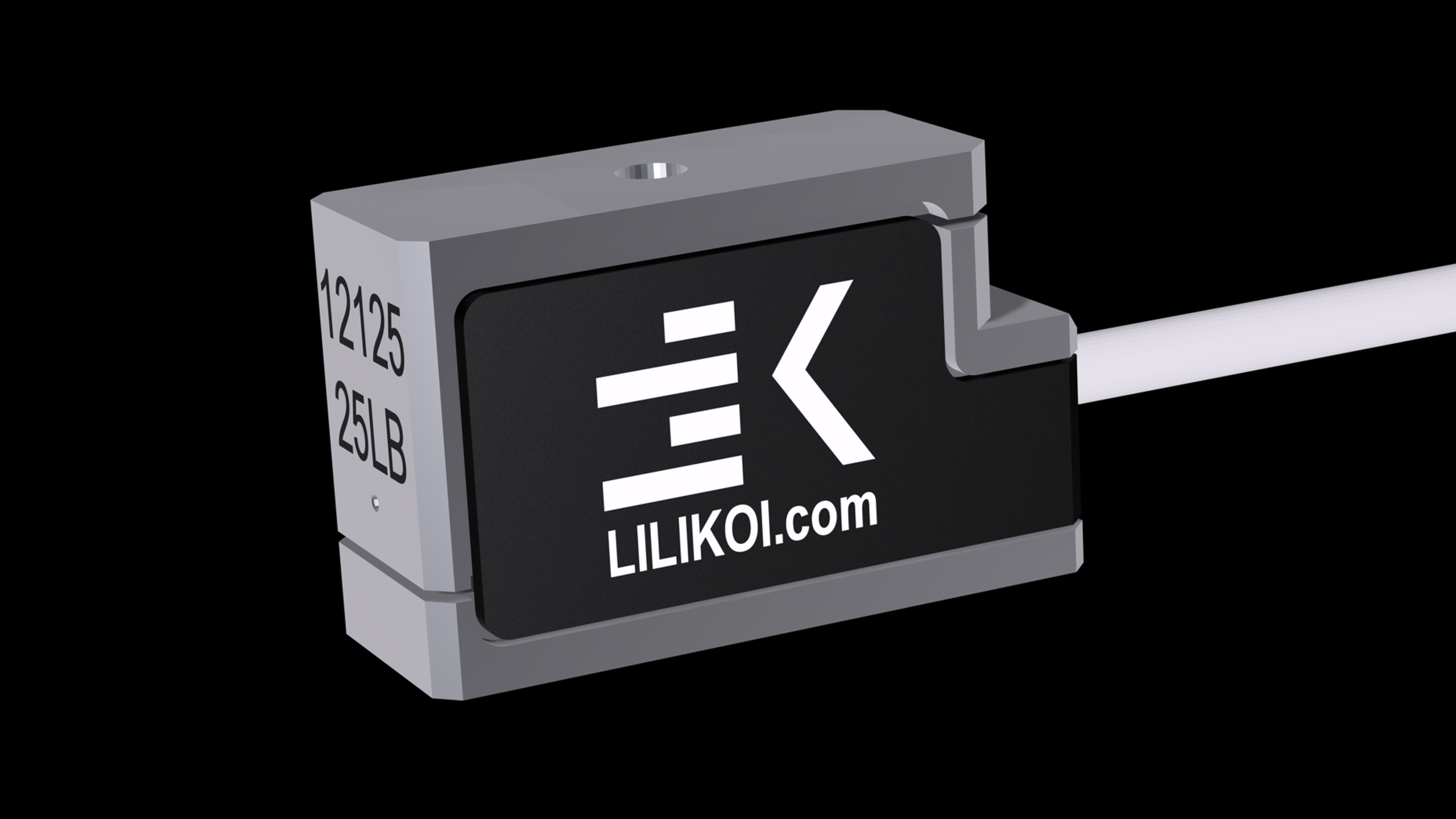

Available in 2lb, 5lb, 10lb, 25lb and 50lb capacities, this miniature load cell provides flexibility across wide range of applications redefining the boundaries of sensing performance in harsh environments.
$957.00

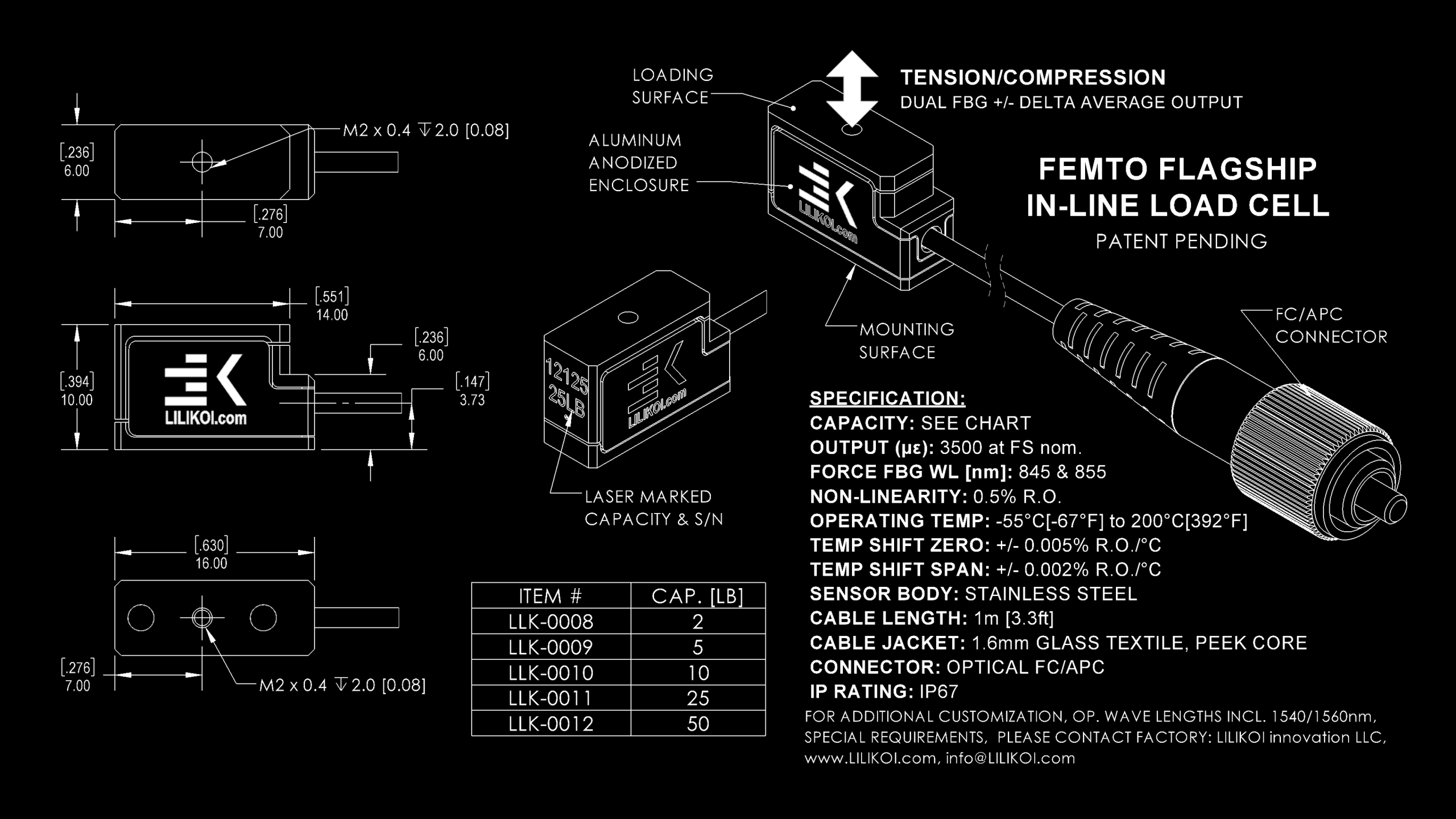

6mm x 16mm x 10mm (W x L x H) miniature envelope with M2 center mounting provisions for ultimate sensing performance.
Offered in 2lb-50lb wide range of capacities provides high accuracy measurements with non-linearity below 0.5%.
Developed for harsh environments, providing complete immunity to EMI, RF, magnetic fields, submersion and high voltages.
Dual FBG optical output technology, enables real time temperature and polarization compensation with off-center load cancellation.
High temperature rating up to 200° C with temp shift zero and temp shift span performance below 0.005% R.O./°C.
There are no more limits to cable length vs. their effect on sensor performance for our FBG optical inline force sensors.
