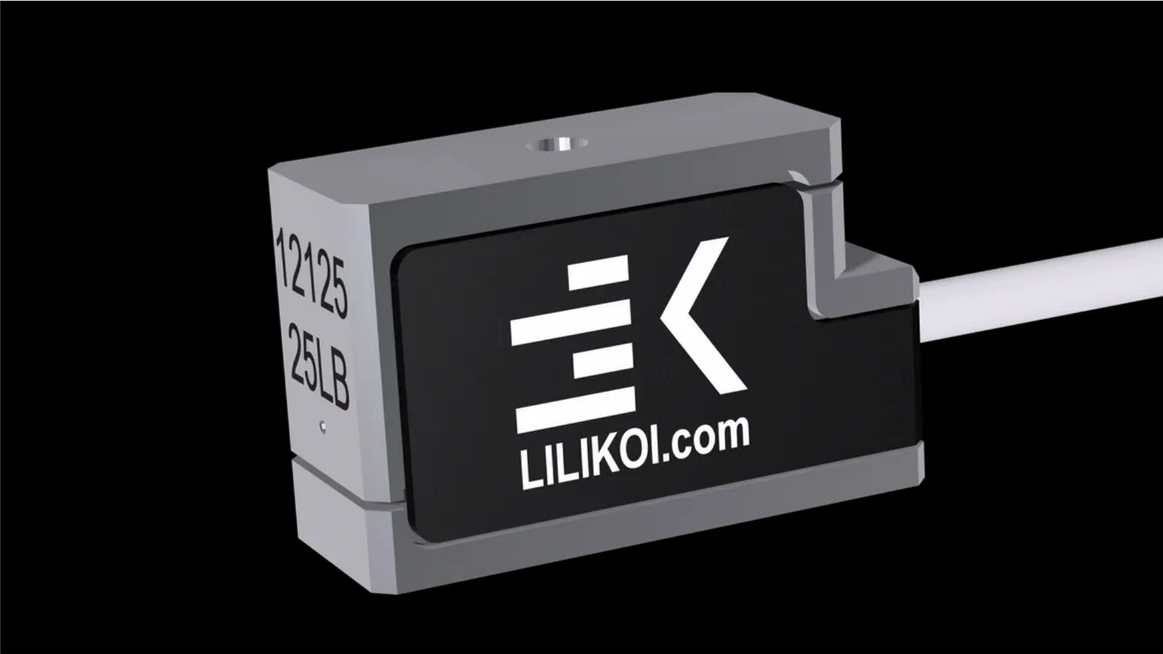

SUBMERSIBLE, HIGH TEMPERATURE RATED in-line fbg fORCE SENSOR

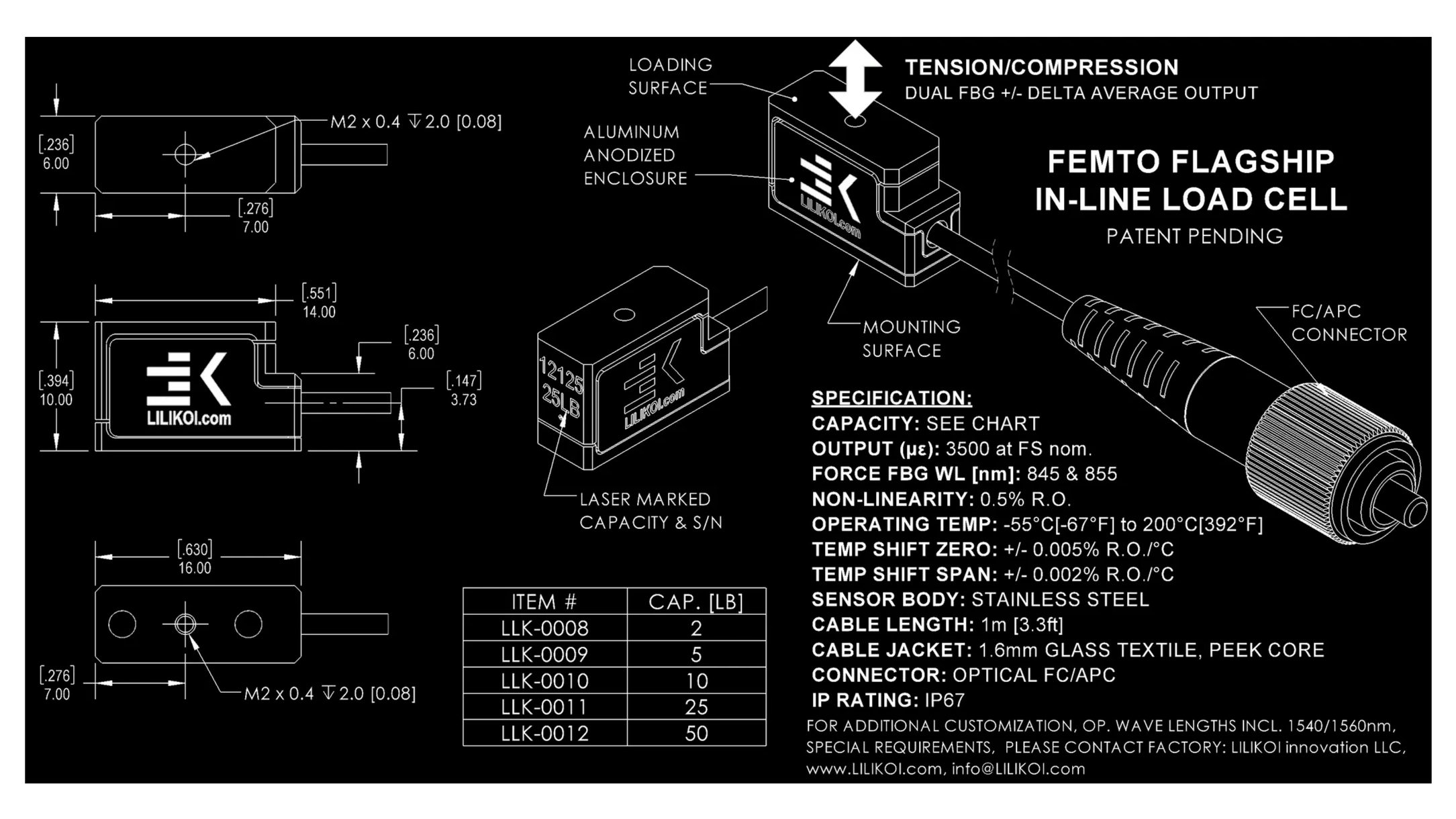

 6mm x 16mm x 10mm (W x L x H) miniature envelope with M2 center mounting provisions for ultimate sensing performance.

Offered in 2lb-50lb wide range of capacities provides high accuracy measurements with non-linearity below 0.5%.

 Developed for harsh environments, providing complete immunity to EMI, RF, magnetic fields, submersion and high voltages.

 Dual FBG optical output technology, enables real time temperature and polarization compensation with off-center load cancellation,

High temperature rating up to 200° C with temp shift zero and temp shift span performance below 0.005% R.O./°C.

There are no more limits to cable length vs. their effect on sensor performance for our FBG optical inline force sensors.
