FBG SENSOR ARRAY MATRIX EV BATTERY PACK TESTING COMPRESSION LOAD CELL

---

FBG Sensor Array Compression Load Cell Application for EV Battery Pack Testing, Real Time Battery Management, Enabling Ultimate Energy Density, Super Charging and Thermal Runaway Prevention.

As electric vehicles (EVs) continue to dominate the automotive landscape, battery technology remains a critical factor in achieving higher energy density, improved safety, and greater efficiency. Among the different battery architectures, pouch cell battery packs offer an attractive option due to their lightweight design and flexibility. However, they pose unique challenges, especially in maintaining structural integrity and managing thermal runaway risks. One key factor in ensuring their performance and safety is the precise control of internal compression forces between individual pouch cells. The introduction of LILIKOI innovation revolutionary FBG Matrix Plate Force Sensors, with arrays of strategically placed sensing locations, presents a transformative solution for optimizing energy density, enabling advanced battery management, and enhancing fast-charging capabilities. These sensors are based on Fiber Bragg Grating (FBG) technology, which allows for high-temperature performance, sustainability to electromagnetic interference, real-time temperature compensation, and additional temperature monitoring features.

The Critical Role of Internal Compression Forces

To maximize energy density while maintaining safety, it is essential to carefully manage the compression forces applied to each pouch cell using fbg sensor array for ev battery pack testing. Optimal compression ensures:

1. Mechanical Stability: Proper compression prevents excessive expansion or deformation of the pouch cells, reducing the risk of internal short circuits.
2. Efficient Heat Dissipation: Consistent contact between cells and cooling mechanisms improves thermal management, preventing localized overheating.
3. Electrochemical Performance: Uniform pressure distribution enhances ion transport within the electrolyte, ensuring consistent charge and discharge cycles.
4. Longevity and Reliability: Properly compressed cells experience less mechanical fatigue, extending battery lifespan and overall EV reliability.

However, achieving and maintaining the ideal compression level is a complex engineering challenge. External factors such as aging, temperature fluctuations, and charge-discharge cycles can alter cell thickness over time, necessitating continuous monitoring and adjustment.

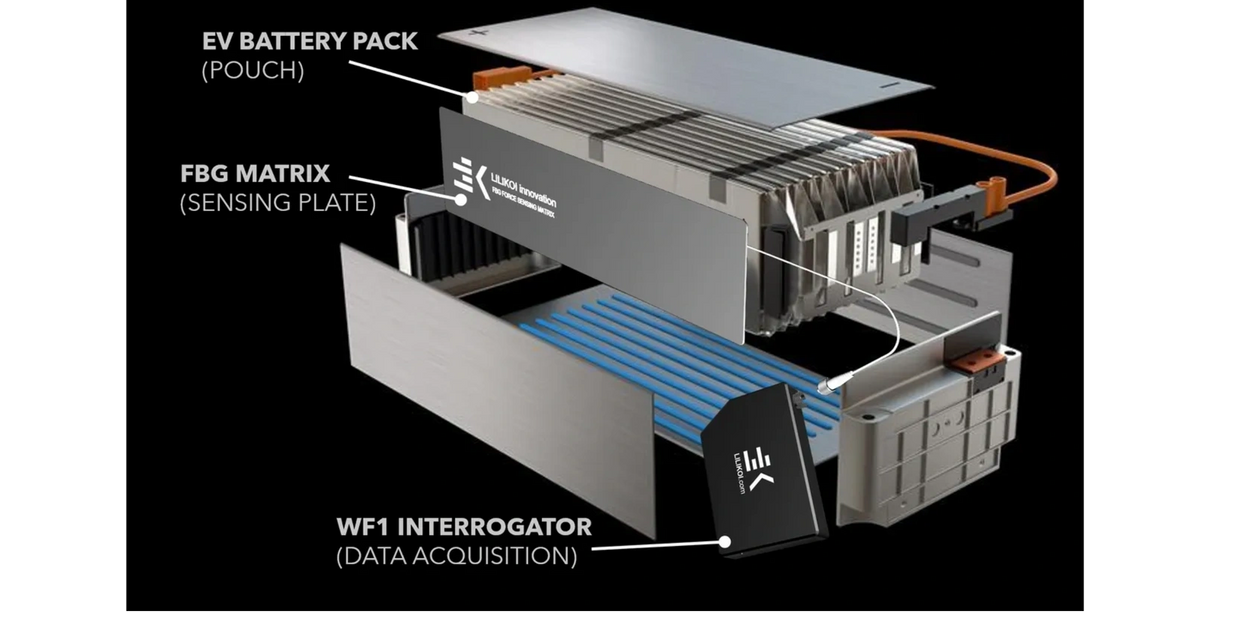

The Role of Matrix-Form Thin FBG Sensor Array Compression Load Cell for EV Battery Pack Testing

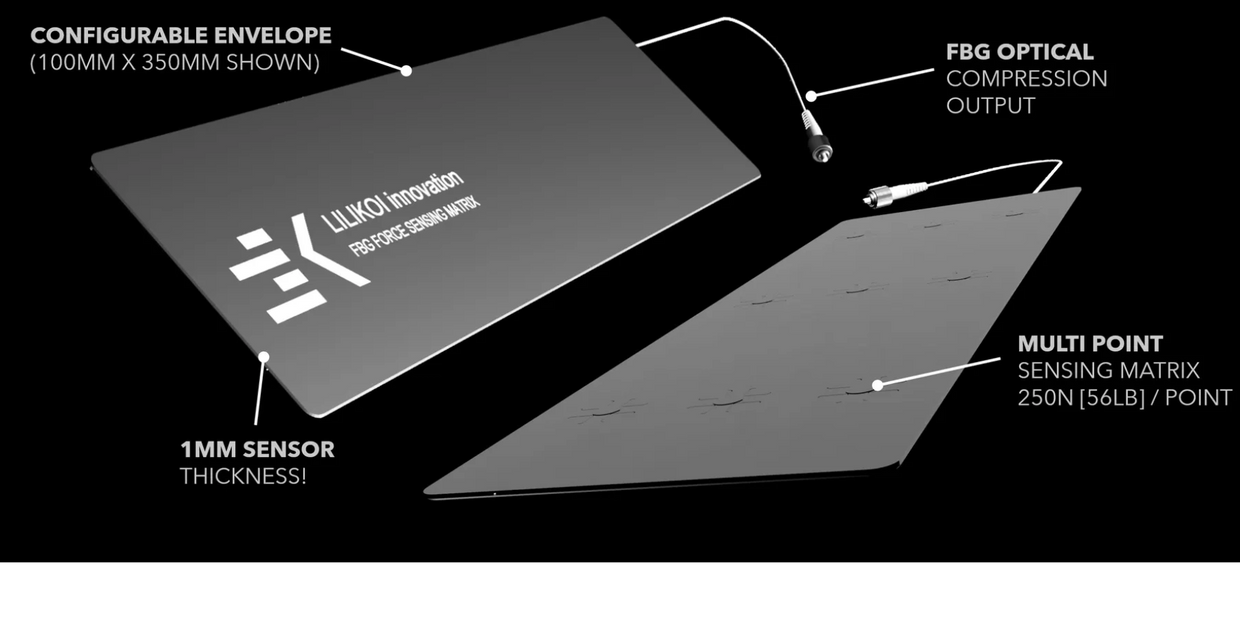

Recent advancements in sensor technology have enabled the integration of ultra-thin force plate sensors within battery packs to monitor and control internal compression forces. These sensors utilize a matrix form with an array of strategically placed sensing locations, offering precise pressure mapping and enhanced monitoring capabilities. The use of Fiber Bragg Grating (FBG) technology provides significant advantages, including:

1. Dynamic Battery Management: By continuously measuring the pressure between cells, the Battery Management System (BMS) can make real-time adjustments to maintain optimal compression and prevent structural degradation.
2. Early Fault Detection: Sudden pressure changes can indicate potential cell swelling, electrolyte leakage, or internal faults, allowing for preemptive      corrective actions before a failure occurs.
3. Enhanced Fast-Charging Capabilities: One of the biggest challenges in fast charging is the increased heat and mechanical stress it imposes on the      battery. With real-time force monitoring and temperature compensation features, the BMS can optimize charging speeds while ensuring that internal pressures remain within safe limits.
4. Temperature Monitoring and Compensation: The FBG-based sensors not only measure compression forces but also monitor temperature variations, allowing for real-time thermal adjustments to mitigate overheating risks and improve battery efficiency.
5. Advanced Testing and Quality Control: During battery manufacturing and assembly, force plate sensors can be used to verify the correct stacking      and alignment of pouch cells, ensuring consistent performance across production batches.

The Future of Battery Pack Design

The integration of fbg sensor array represents a paradigm shift in EV battery pack testing and design. By enabling real-time monitoring and control through a matrix of sensing locations with the compression load cell, these sensors help manufacturers push the boundaries of energy density while maintaining the highest safety standards. The incorporation of FBG technology further enhances battery safety by providing high-temperature performance, real-time temperature compensation, and comprehensive thermal monitoring. As battery technology continues to evolve, the combination of innovative sensing technologies with advanced battery management strategies will be instrumental in achieving longer-range, faster charging, and safer EVs.

The rapid advancement of EV technology demands increasingly efficient and safe battery solutions. Managing internal compression forces in pouch battery packs is crucial for maintaining energy density, structural integrity, and safety. The introduction of thin force plate sensors, designed in a matrix form with FBG technology, provides a revolutionary approach to battery monitoring, testing, and supercharging. By harnessing this technology, EV manufacturers can not only mitigate thermal runaway risks but also unlock new levels of performance and reliability for the next generation of electric vehicles.

Email us at info@lilikoi.com to discuss your force sensing needs battery pack testing and real time monitoring applications.
